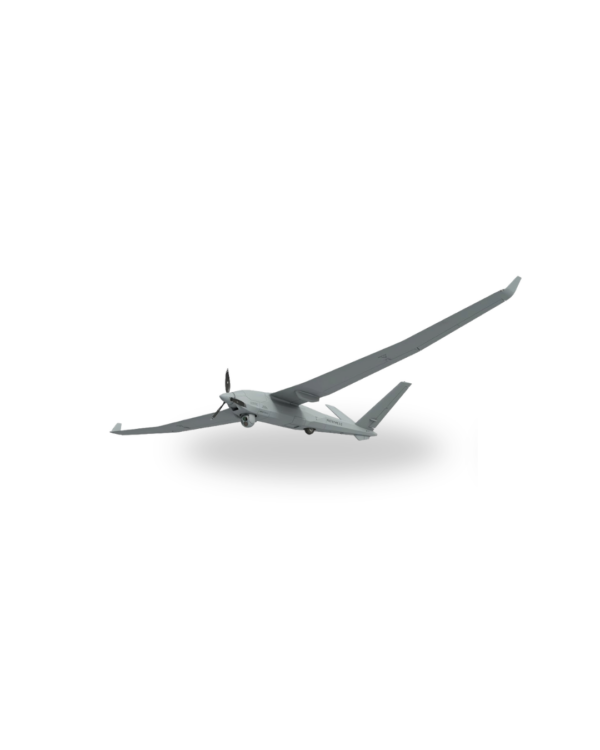

This platform is a high-endurance, high-altitude tactical fixed-wing Unmanned Aerial Vehicle (UAV) engineered for dual-mission profiles: advanced long-range Intelligence, Surveillance, and Reconnaissance (ISR) and real-time Airborne Communication Relay. Operating as an overhead network hub, it effectively bridges the critical ‘terminal signal gap’ caused by terrain masking, foliage degradation, or earth curvature. This system ensures a continuous, robust, low-latency command and high-definition video link between Ground Control Stations (GCS) and low-altitude strike assets during high-precision terminal kamikaze dives.
Technical Specifications
Parameter Specification
Wing Span 3195 mm
Material Composite, CF and GF
All-Up Weight 7120 grams
Cruise Speed 70 km/h
Maximum Speed 100 km/h
Flight Time Up to 8 Hours
Maximum AGL Height 3000 meters
Maximum ASL Height 5500 meters
Wind Resistance Up to 35 km/h
Controlling Range 120 km (extended)
Operational Frequency 1200/5800/868 MHz
Launch Method Moving Vehicle/Hand/Runway Launch Capable
Vision Night/Thermal/Day Light
Applications
ISR and Signal Repeater
